Able to support a load weighing up to 8kg
With 6 air channels and 1 module mounting surface, and self-sealing at robot side

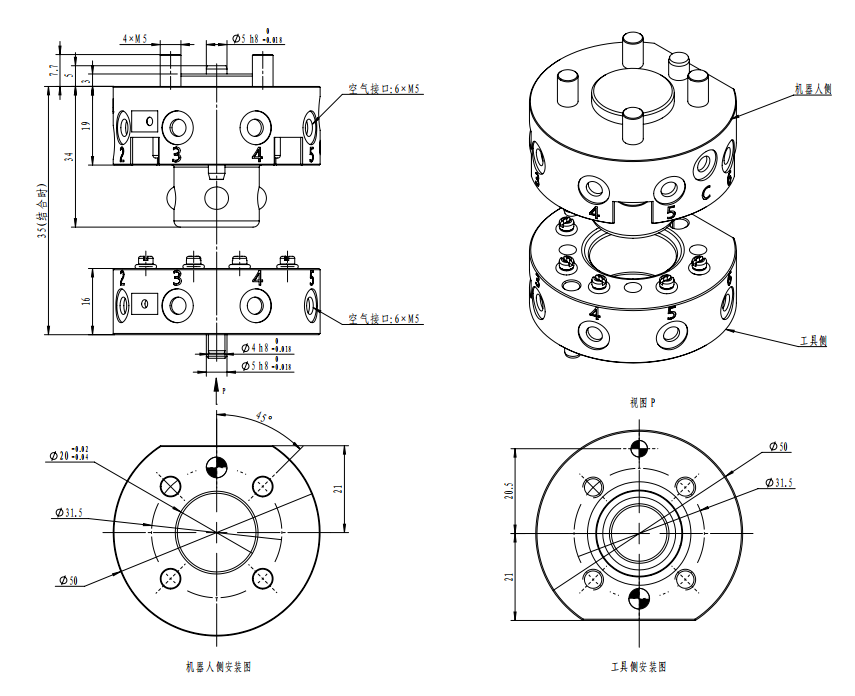

Overall dimension: Φ50mm×H35mm
Equipped with a basic IO module, a face detection module, and a high frequency module
Main body | Payload | 8kg | |
Repeat accuracy | ±0.02mm | ||
Static Moment Capacity | Bending moment | 18N·m | |
Torque moment | 18N·m | ||
Material | Main body | Aluminium alloy | |
Locking mechanism | Steel alloy | ||
Shape size (locked) | φ50mmxH35mm | ||
Product weight | Robot side body | 111g | |
Tool side body | 64g | ||
Lock/Unlock mechanism | Spring-loaded self-resettling mechanism | ||
Lock/Unlock Pressure | 0.45~0.8MPa(5~8kgf/m2) | ||
Permitted temperature and humidity | 0-55°C,0-95% | ||
Control body | General | Air port | 6xM5 |
Cylinder motion sensor | Lock sensor | / | |
Unlock sensor | / | ||
In-place sensor | Confirm that the tool is in place | / |
