橋田
QT-020

Able to support a load weighing up to 20kg

With 8 air channels and 4 module mounting surfaces

Combined body weight: 320g

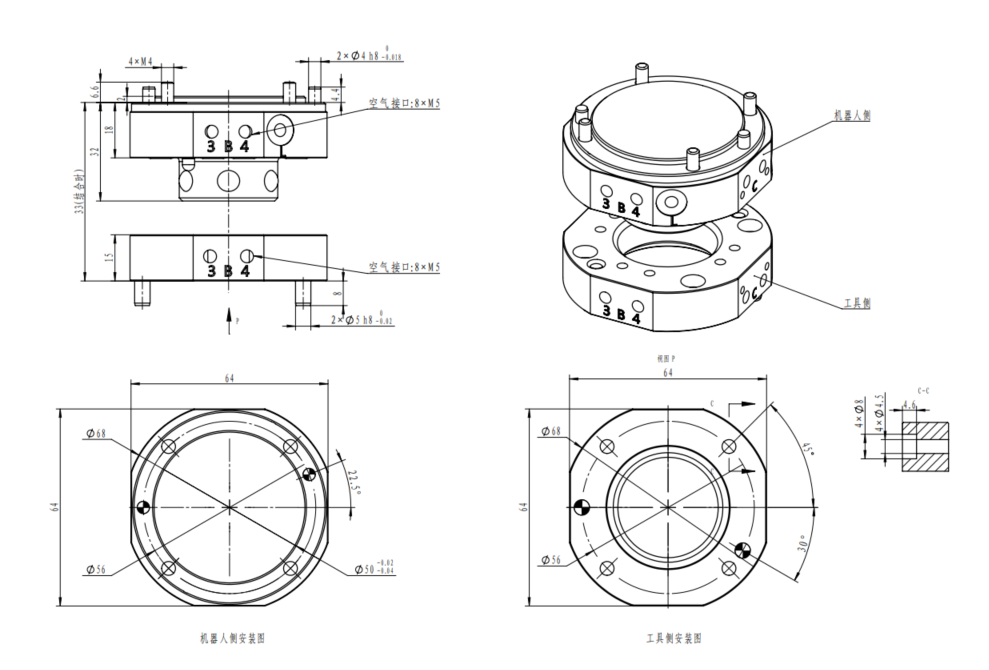

Overall dimension: Φ68mm×H33mm

Connected to Yaskawa-MH24 and Fanuc-M10ia 6-axis robots directly through flange

Equipped with a basic IO module, a face detection module, and a high frequency module and an external sensor module

Main bodyPayload20kg
Repeat accuracy±0.02mm
Static Moment CapacityBending moment56.8N·m
Torque moment78.4N·m
MaterialMain bodyAluminium alloy
Locking mechanismAlloy steel
Shape size (locked)φ68mm×H33mm
Product weightRobot side body220g
Tool side body100g
Weight of main plate with sensor500g
Tool disc weight with sensor120g
Lock/Unlock mechanismSpring self-resetting locking
Lock/Unlock Pressure0.45~0.8MPa(4~7kgf/cm2)
Permitted temperature and humidity0-55°C,0-95%
GeneralAir Port8x M5
