橋田
QT-060

Able to support a load weighing up to 60kg

With 9 air channels and 1 module mounting surface

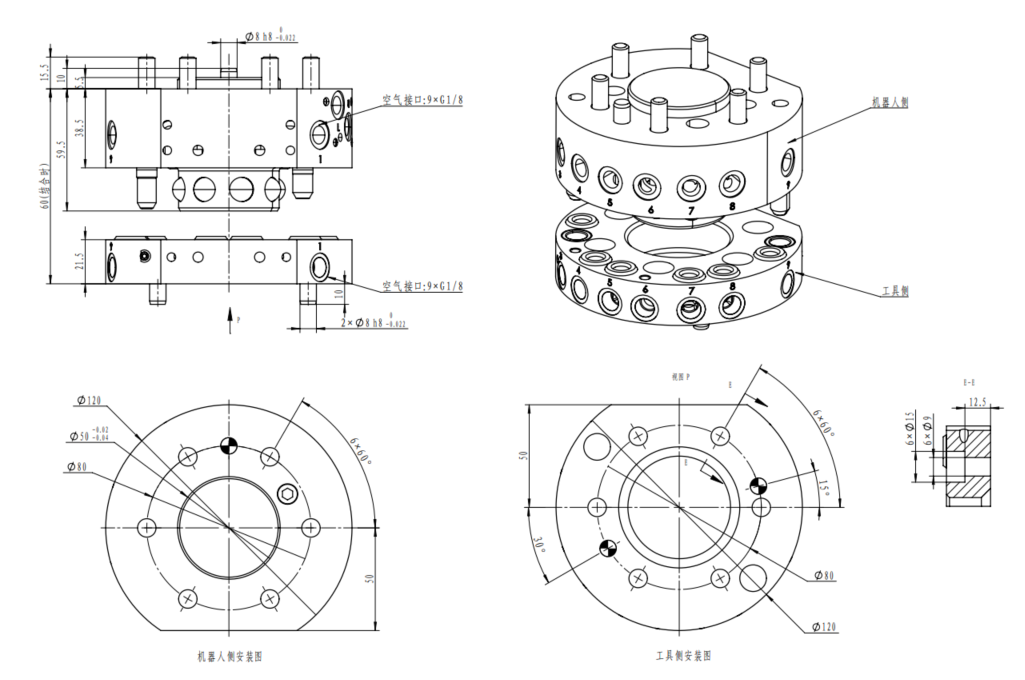

Overall dimension: Φ120mm×H60mm

Connected through flanges in line with ISO9409-80-6-M8

Equipped with a basic IO module, supporting up to 30 IOs as standards

Main bodyPayload60kg
Repeat accuracy±0.02mm
Static Moment CapacityBending moment442N·m
Torque moment442N·m
MaterialMain bodyAluminium alloy
Locking mechanismAlloy steel
Shape size (locked)
Φ120mm×H60m
Product weightRobot side body1588g
Tool side body410g
Lock/Unlock mechanismSpring self-resetting locking
Lock/Unlock Pressure0.45~0.8MPa(4~7kgf/cm2)
Permitted temperature and humidity0-55℃,0-95%
GeneralAir Port9×G1/8
Control bodyLock/Unlock sensorLock sensor
A proximity switch Inside (DC  three-wire)
Unlock sensor
A proximity switch Inside (DC  three-wire)
Surface detection sensorTOOL CirmingA proximity switch Inside (DC  three-wire)
Cylinder solenoid valvePneumatic control

Two-position and Five-port

solenoid valve

dipswitchIdentification tool numbernot have
safety switchInspection tools parked in placenot have
