Able to support a load weighing up to 350kg
With 8 air channels, standardized modules and 3 sets of module mounting surfaces
Equipped with an unlocking sensor, a locking sensor and a face in-place sensor as standard

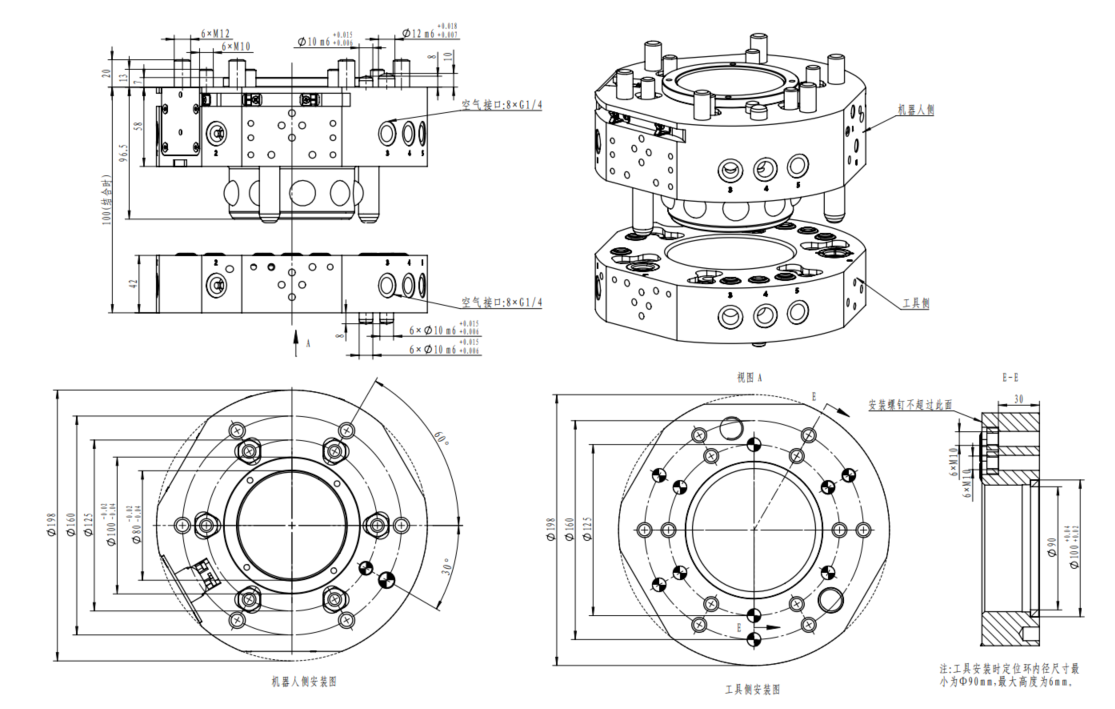

Overall dimension: Φ198mm×H100mm
Connected through flanges in line with ISO9409-125-6-M10/ISO9409-160-6-M12
Main body | Payload | 350kg | |
Repeat accuracy | ±0.02mm | ||
Allowable static moment | Bending moment | 2800N·m | |
Torque moment | 2800N·m | ||
Material | Main body | Aluminium alloy | |
Locking mechanism | Alloy Steel | ||
Shape size (locked) | φ198mm×H100mm | ||
Product weight | Robot side body | 7.05kg | |
Tool side body | 2.65kg | ||
Lock/Unlock mechanism | Spring self-resetting locking | ||
Lock/Unlock Pressure | 0.45~0.8MPa | ||
Permitted temperature and humidity | 0-55°C,0-95% | ||
General | Air port | 8×G1/4(Non-self-sealing) | |
Control body | Cylinder motion sensor | Lock sensor | A proximity switch Inside (DC three-wire) |
Unlock sensor | A proximity switch Inside (DC three-wire) | ||
Surface detection sensor | TOOL Cirming | A proximity switch Inside (DC three-wire) |
