Able to support a load weighing up to 650kg
With standardized modules, multiple module mounting surfaces and strong non-standard adaptability
Applicable to tool changing in mainstream welding, riveting, handling, and binding processes
Main body | Payload | 650kg | |
Repeat accuracy | ±0.01mm | ||
Static Moment Capacity | Bending moment | 5000N·m | |
Torque moment | 5000N·m | ||
Material | Main body | Aluminium alloy | |
Locking mechanism | Alloy steel | ||

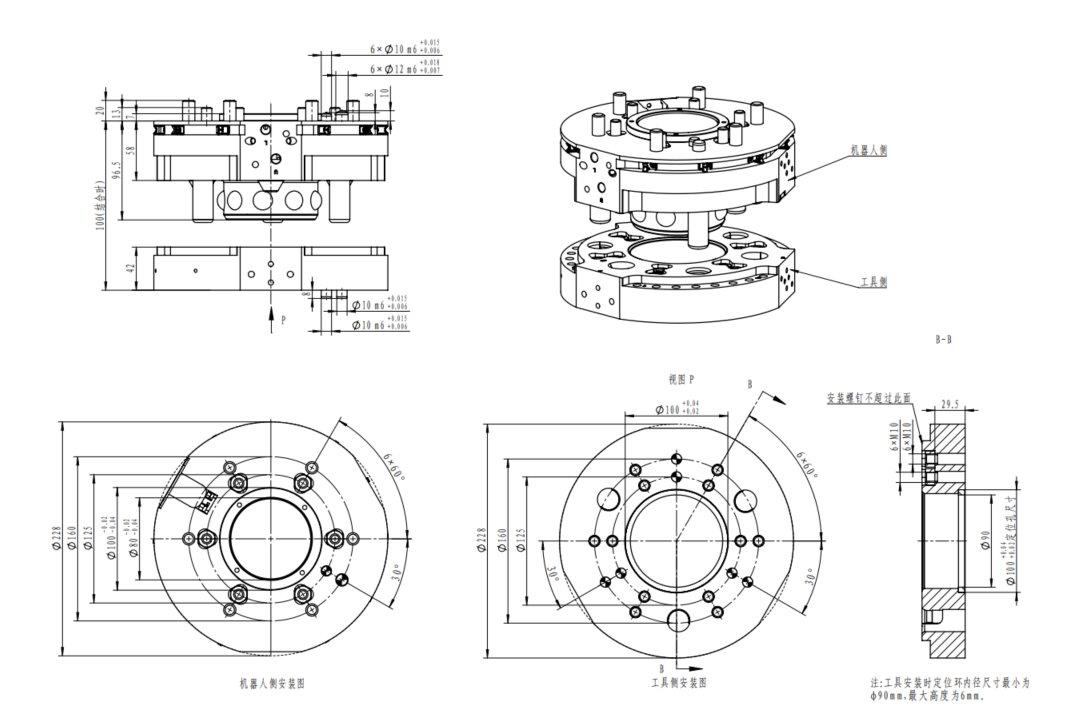

Shape size (locked) | φ228mmxH100mm | ||
Product weight | Robot side body | 7.75kg | |
Tool side body | 4.45kg | ||
Lock/Unlock mechanism | Spring self-resetting locking | ||
Lock/Unlock Pressure | 0.45~0.8MPa | ||
Permitted temperature and humidity | 0-55°C,0-95% | ||
Control body | Cylinder motion sensor | Lock sensor | A proximity switch Inside (DC three-wire) |
Unlock sensor | A proximity switch Inside (DC three-wire) | ||
Surface detection sensor | TOOL Cirming | A proximity switch Inside (DC three-wire) |
Supports up to 200A current transmission
Flexible docking technology
Protection grade: IP65 (under connection)
Specialized module versions for servo and signal transmission
High signal transmission stability
Excellent anti-interference properties
Flexible docking technology
Protection class: IP65 (in the connected state)
Integrated solenoid valve control module, used to control the quick-change disk locking/unlocking
Integrated tool air supply, only one way to realize the quick-change, tool air supply
Integrated pressure detection, real-time detection of air supply pressure
A variety of switch trigger options to suit different scenarios
Patented safety circuit, safety level up to PL d Cat 3.
Quick-change safety circuit to realize tool unlocking at a fixed point.
Non-drip design, self-sealing on disconnection
Available in 08 and 12 gauge
Flexible design with automatic docking correction
Easy to install, rotatable interface
Unidirectional self-sealing on the R side after disconnection.
Modular design for quick and easy maintenance.
Single module provides 5 air passages.
